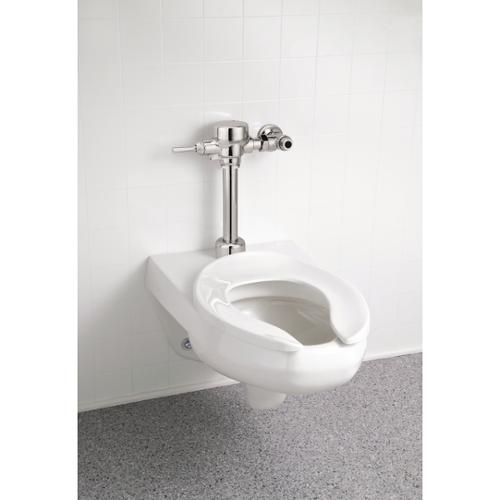

Delta TECK® Exposed Water Closet Flush Valve. Flush Valve For Water Closets With 1-1/2" Top Spud, Maximum 11-1/2" Or 11 3/4" Height (C/L Of Inlet To Base Of Outlet).

▪ Features:

▪ Quiet Action, TECK® Exposed Diaphragm Flush Valve With Polished Chrome Plated Finish
▪ Vandal Resistant Cover Screw
▪ Metal "Non Hold Open" ADA Compliant Oscillating Handle
▪ Vacuum Breaker, Renewable Seat, Cover Tube And S/S Wall Flange
▪ Chloramine Resistant Diaphragm Attached To Guide With Forged Metal Retainer.
▪ Spud Flange And Concealed Spud Nut
▪ Maximum 292Mm(11 1/2") From Centerline Of Valve Inlet To Top Of Water Closet, Except -1 Trap Seal Models Which Are Maximum 11 3/4"
▪ 1" Fip/Copper Sweat Inlet Adaptor For Angle Check Stop With Protecting Cap
▪ Adjustable 121Mm (4.75”) Plus Or Minus 11Mm (7/16”) Inlet/Valve Outlet Centers
▪ External Water Conserving Flush Adjustment: 6 Litre(1.6 Gal.)Factory Set Flush - Field Adjustable From 4.8L To 25L (1.27 To 6.6 Gal.)
▪ ADA Compliant To Meet Handicapped Accessibility Standard ICC/ANSI A117.1 Of Less Than 5 Lbs Operating Force
▪ Mfg #81T201
